Webhooks are a mechanism that allows event information to be sent from one application to another, without the need for constant status checks. With webhooks, applications can exchange data in real time, enabling more efficient integration and process automation.

The events you have to choose from in the ONe application are:

"Cart opened" is an event notifying that a user has opened a cart.

“Client logged" is an event notifying that a user has logged into the platform. In case of inactivity for 30 minutes, renewed activity will resend this event.

"OfferOpened BO" is an event notifying that a user has entered the offer view. The event is sent whenever the offer ID in the URL changes.

💡

Webhooks can also be configured in BackOffice. Click here to see the manual.

Table of contents Glossary GET - returns list of existing webhooks POST - creates new webhook PUT - updates existing webhook GET - returns details of webhook DELETE - deletes existing webhook POST - sends example request to webhook callback GET - returns list of valid webhook types

Glossary

Name	Explanation
`pageNumber`	Page number to fetch
`pageSize`	Page size to fetch
`search`	Is used to search by webhook name. You must enter at least 3 characters
`name`	Name of webhook
`status`	ACTIVE, INACTIVE
`webhookType` `name` `exchangeName`	Type of webhook Possible to choose: `CartOpened`, `ClientLogged`, `OfferOpened` for `CartOpened` use `p-u-o-m-e-c-cartopened-klient`, for `ClientLogged`use `p-u-o-m-e-c-clientlogged-klient`, for `OfferOpened` use `p-u-o-m-e-o-offeropened-klient`
`callbackUrl`	The URL where the event will be sent
`callbackAuthentication` `type` `username` `password`	authorization data Authentication type. Possible to choose `NONE`, `HTTP_BASIC` username of authorization password of authorization
`webhookId`	Identifier of webhook

GET - returns list of existing webhooks

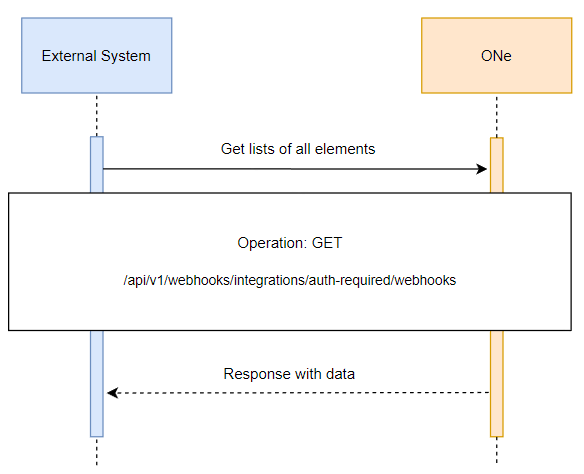

There is possible to get list of all existing webhooks. Use GET /api/v1/webhooks/integrations/auth-required/webhooks. The diagram below shows the dependence of communicating with the API:

Use the parameter in query below to get list of webhooks:

pageNumber

pageSize

Example request:

json
curl -X GET
"https://api-preprod.one.unity.pl/api/v1/webhooks/integrations/auth-required/webhooks?pageNumber=1&pageSize=10"
-H  "accept: */*"
-H  "one-tenant: {tenant}"
-H  "ApiAuth: {apiKey}"

In response you will receive list of existing webhooks:

Example response:

json
{
  "items": [
    {
      "id": "c1d10add-f75d-4ac2-a930-58bc8ef9a316",
      "status": "ACTIVE",
      "name": "New sale",
      "webhookType": {
        "name": "CartOpened",
        "exchangeName": "p-u-o-m-e-c-cartopened-klient"
      },
      "callbackUrl": "https://fgvw5dzdvrjlfqeq6gnwx73qwq0baind.lambda-url.eu-west-1.on.aws/",
      "callbackAuthentication": {
        "type": "HTTP_BASIC",
        "username": "admin",
        "password": "admin"
      }
    },
    {
      "id": "ad4f29fa-674b-49a0-b872-86fb61b84c39",
      "status": "ACTIVE",
      "name": "Webhook test - karta",
      "webhookType": {
        "name": "CartOpened",
        "exchangeName": "p-u-o-m-e-c-cartopened-klient"
      },
      "callbackUrl": "https://fgvw5dzdvrjlfqeq6gnwx73qwq0baind.lambda-url.eu-west-1.on.aws/",
      "callbackAuthentication": {
        "type": "HTTP_BASIC",
        "username": "admin",
        "password": "admin"
      }
    }
  ],
  "totalItems": 2,
  "pageNumber": 1,
  "totalPages": 1,
  "pageSize": 10,
  "nextPage": null
}

POST - creates new webhook

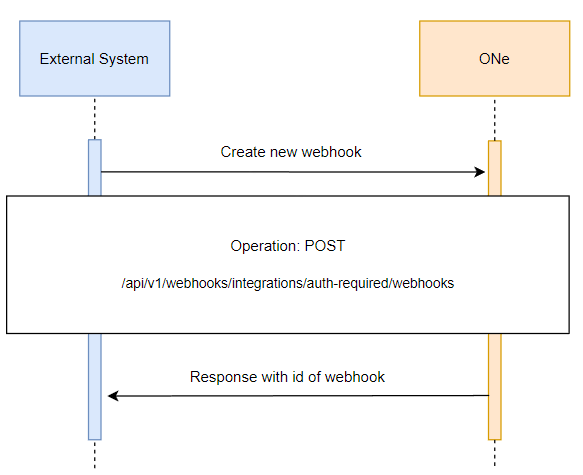

In order to add new webhook to ONe platform use POST /api/v1/webhooks/integrations/auth-required/webhooks. The diagram below shows the dependency of communicating with the API:

Example request:

json
curl -X POST
"https://api-preprod.one.unity.pl/api/v1/webhooks/integrations/auth-required/webhooks"
-H  "accept: */*"
-H  "one-tenant: {tenant}"
-H  "ApiAuth: {apiKey}"
-H "Content-Type: application/json"
-d " {
  "name": "New sale", -- required
  "status": "ACTIVE", -- required
  "webhookType": { -- required
    "name": "CartOpened", -- required
    "exchangeName": "p-u-o-m-e-c-cartopened-klient" -- required
  },
  "callbackUrl": "https://fgvw5dzdvrjlfqeq6gnwx73qwq0baind.lambda-url.eu-west-1.on.aws/", -- required
  "callbackAuthentication": { -- required
    "type": "HTTP_BASIC", -- required
    "username": "admin",  -- required when type = 'HTTP_BASIC', otherwise ignored
    "password": "admin" -- required when type = 'HTTP_BASIC', otherwise ignored
  }
}

In response you will id of created webhook:

Example response:

json
{
  "id": "c1d10add-f75d-4ac2-a930-58bc8ef9a316"
}

PUT - updates existing webhook

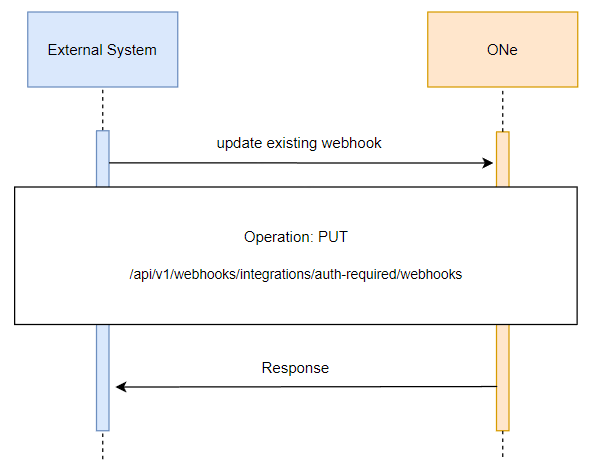

With this endpoint it is possible to update existing webhook. To do this, use PUT/api/v1/webhooks/integrations/auth-required/webhooks. The sequence diagram below shows the process:

Example request:

json
curl -X PUT
"https://api-preprod.one.unity.pl/api/v1/webhooks/integrations/auth-required/webhooks"
-H  "accept: */*"
-H  "one-tenant: {tenant}"
-H  "ApiAuth: {apiKey}"
-d  "{
{
  "id": "ad4f29fa-674b-49a0-b872-86fb61b84c39",  -- required
  "status": "ACTIVE",  -- required
  "name": "Webhook test - card",  -- required
  "webhookType": {  -- required
    "name": "CartOpened",  -- required
    "exchangeName": "p-u-o-m-e-c-cartopened-klient"  -- required
  },
  "callbackUrl": "https://fgvw5dzdvrjlfqeq6gnwx73qwq0baind.lambda-url.eu-west-1.on.aws/",  -- required
  "callbackAuthentication": {  -- required
    "type": "HTTP_BASIC",  -- required
    "username": "admin",  -- required when type = 'HTTP_BASIC', otherwise ignored
    "password": "admin"  -- required when type = 'HTTP_BASIC', otherwise ignored
  }
}"

GET - returns details of webhook

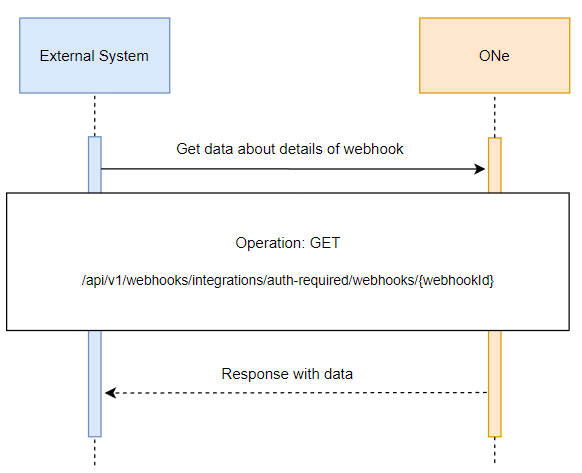

There is possible to get details of webhook. Use GET/api/v1/webhooks/integrations/auth-required/webhooks/{webhookId} using specific ID (webhookId). The diagram below shows the dependence of communicating with the API:

Use the parameter in path below to get information about specific webhook:

webhookId

Example request:

json
curl -X GET
"https://api-preprod.one.unity.pl/api/v1/webhooks/integrations/auth-required/webhooks/ad4f29fa-674b-49a0-b872-86fb61b84c39"
-H  "accept: */*"
-H  "one-tenant: {tenant}"
-H  "ApiAuth: {apiKey}"

In response you will receive information about specific webhook

Example response:

json
{
  "id": "ad4f29fa-674b-49a0-b872-86fb61b84c39",
  "status": "ACTIVE",
  "name": "Webhook test - card",
  "webhookType": {
    "name": "CartOpened",
    "exchangeName": "p-u-o-m-e-c-cartopened-klient"
  },
  "callbackUrl": "https://fgvw5dzdvrjlfqeq6gnwx73qwq0baind.lambda-url.eu-west-1.on.aws/",
  "callbackAuthentication": {
    "type": "HTTP_BASIC",
    "username": "admin",
    "password": "admin"
  }
}

DELETE - deletes existing webhook

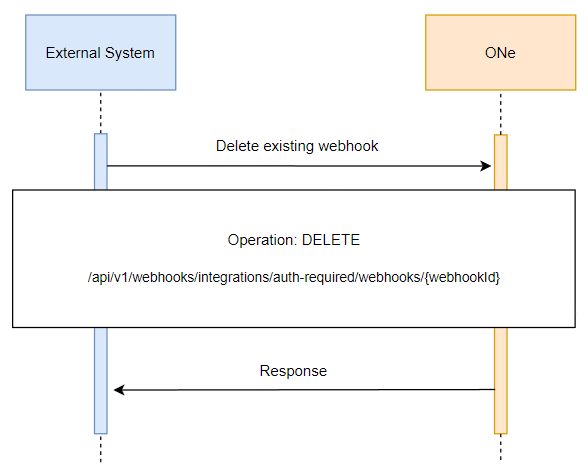

Use Delete /api/v1/webhooks/integrations/auth-required/webhooks/{webhookId} to delete existing webhook. The sequence diagram below shows the dependency of communicating with the API:

Use the parameter below in path to delete webhook:

webhookId

Example request:

json
curl -X DELETE
DELETE "https://api-preprod.one.unity.pl/api/v1/webhooks/integrations/auth-required/webhooks/ad4f29fa-674b-49a0-b872-86fb61b84c39"
-H  "accept: */*"
-H  "one-tenant: {tenant}"
-H  "ApiAuth: {apiKey}"

POST - sends example request to webhook callback

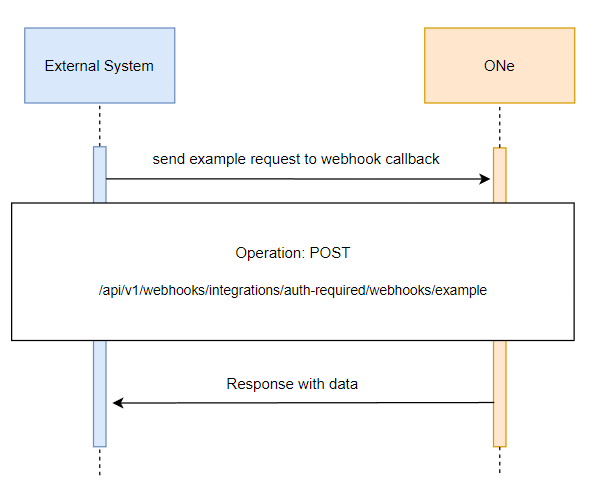

In order to sends example request to webhook callback use POST /api/v1/webhooks/integrations/auth-required/webhooks/example. The diagram below shows the dependency of communicating with the API:

Example request:

json
curl -X POST
"https://api-preprod.one.unity.pl/api/v1/webhooks/integrations/auth-required/webhooks/example"
-H  "accept: */*"
-H  "one-tenant: {tenant}"
-H  "ApiAuth: {apiKey}"
-H "Content-Type: application/json"
-d " {
  "webhookType": {  -- required
    "name": "CartOpened",  -- required
    "exchangeName": "p-u-o-m-e-c-cartopened-klient"  -- required
  },
  "callbackUrl": "https://fgvw5dzdvrjlfqeq6gnwx73qwq0baind.lambda-url.eu-west-1.on.aws/",  -- required
  "callbackAuthentication": { -- required
    "type": "HTTP_BASIC", -- required
    "username": "admin",  -- required when type = 'HTTP_BASIC', otherwise ignored
    "password": "admin"  -- required when type = 'HTTP_BASIC', otherwise ignored
  }
}

In response you will receive example request of webhook callback:

Example response:

json
{
  "requestHeaders": {
    "Accept": [
      "application/json, application/cbor, application/*+json"
    ],
    "Authorization": [
      "Basic YWRtaW46YWRtaW4="
    ],
    "one-tenant": [
      "klient"
    ],
    "Content-Type": [
      "application/json"
    ],
    "Content-Length": [
      "267"
    ]
  },
  "requestBody": "{\n  \"type\" : \"CartOpened\",\n  \"tenantKey\" : \"example\",\n  \"cartId\" : \"00000000-0000-0000-0000-000000000000\",\n  \"clientId\" : \"org:00000000-0000-0000-0000-000000000000\",\n  \"eventId\" : \"13200948-cf44-4853-9eee-88eb9284ea23\",\n  \"timestamp\" : \"2023-02-22T04:32:51.014160Z\"\n}"
}

GET - returns list of valid webhook types

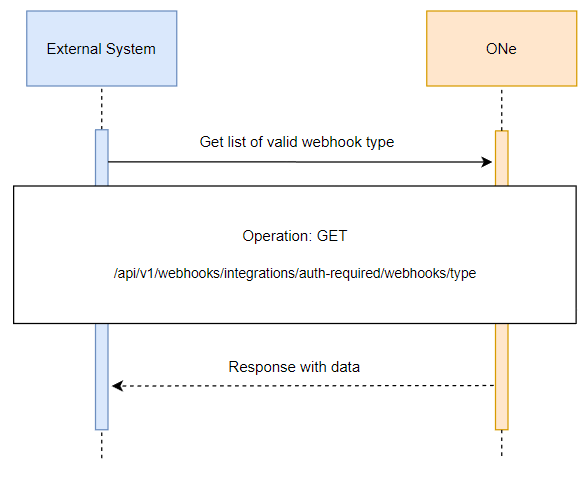

There is possible to get list of valid webhook types. Use GET/api/v1/webhooks/integrations/auth-required/webhooks/type using specific ID. The diagram below shows the dependence of communicating with the API:

Example request:

json
curl -X GET
"https://api-preprod.one.unity.pl/api/v1/webhooks/integrations/auth-required/webhooks/types"
-H  "accept: */*"
-H  "one-tenant: {tenant}"
-H  "ApiAuth: {apiKey}"

In response you will receive information about valid webhook types

Example response:

json
[
  {
    "name": "CartOpened",
    "exchangeName": "p-u-o-m-e-c-cartopened-klient"
  },
  {
    "name": "ClientLogged",
    "exchangeName": "p-u-o-m-e-c-clientlogged-klient"
  },
  {
    "name": "OfferOpened",
    "exchangeName": "p-u-o-m-e-o-offeropened-klient"
  }
]
