The invoice is a sales document confirming the transaction between two contractors. By issuing and forwarding an invoice, a tax obligation arises. The invoice must have the necessary data elements to be considered an invoice. The invoice must have detailed information about the transaction:
- data identifying the document: number, date of issue,
- buying and selling sides: seller and buyer,
- specification of the subject of the transaction: name of goods or services, number, price, value,
- data for the settlement of applicable taxes,
- summary of the total amount due,
- information on the agreed terms and form of payment.
Table of contents
Table of contentsGlossaryPUT - Create or update invoiveDELETE single invoicePOST - Initialise file uploading for invoicePOST - Complete file uploading for invoiceGET single invoiceGET invoice status (amount paid and if it's fully paid)PUT - set invoice status (amount paid and if it's fully paid)
Glossary
Name | Explanation |
amountPaid | number, Gross value, determines whether the invoice has been fully paid |
clientData :
clientId
tin
clientType
phone
invoiceEmail | Buyer's data:
Identifier number of buyer
Type of buyer ("INDIVIDUAL" "ORGANIZATIONβ)
|
clientData β addressData
city
country
name
postalCode
street | Address of buyer |
notes | invoice notes |
payerData :
clientId
tin
phone | payer data:
Identifier number of payer |
payerData β addressData
city
country
name
postalCode
street | address of payer |
tenantData :
tin | seller details: |
tenantData β addressData
city
country
name
postalCode
street | address of seller |
operatorData
id
name | operator assigned to the customer (this information is not displayed on the invoice)
<uuid> for example - 00e9e304-e5df-450a-a861-0211c471096b |
number | invoice number |
receiptReferenceNumber | receipt number to which the invoice relates |
splitPayment | Polish mpp - split payment mechanism (true or false) |
isPaid | whether the invoice has been paid (true or false) |
customerPurchaseNumbers | the customer order number to which the invoice relates |
totalPrices :
netPrice
grossPrice
taxValue |
number
number
number |
paymentDate | payment deadline |
saleDate | sale date |
currencyCode | possible to choose: "AED" "AFN" "ALL" "AMD" "ANG" "AOA" "ARS" "AUD" "AWG" "AZN" "BAM" "BBD" "BDT" "BGN" "BHD" "BIF" "BMD" "BND" "BOB" "BOV" "BRL" "BSD" "BTN" "BWP" "BYR" "BZD" "CAD" "CDF" "CHF" "CLF" "CLP" "CNY" "COP" "CRC" "CUC" "CUP" "CVE" "CZK" "DJF" "DKK" "DOP" "DZD" "EGP" "ERN" "ETB" "EUR" "FJD" "FKP" "GBP" "GEL" "GHS" "GIP" "GMD" "GNF" "GTQ" "GYD" "HKD" "HNL" "HRK" "HTG" "HUF" "IDR" "ILS" "INR" "IQD" "IRR" "ISK" "JMD" "JOD" "JPY" "KES" "KGS" "KHR" "KMF" "KPW" "KRW" "KWD" "KYD" "KZT" "LAK" "LBP" "LKR" "LRD" "LSL" "LYD" "MAD" "MDL" "MGA" "MKD" "MMK" "MNT" "MOP" "MRO" "MUR" "MVR" "MWK" "MXN" "MXV" "MYR" "MZN" "NAD" "NGN" "NIO" "NOK" "NPR" "NZD" "OMR" "PAB" "PEN" "PGK" "PHP" "PKR" "PLN" "PYG" "QAR" "RON" "RSD" "RUB" "RWF" "SAR" "SBD" "SCR" "SDG" "SEK" "SGD" "SHP" "SLL" "SOS" "SRD" "SSP" "STD" "SYP" "SZL" "THB" "TJS" "TMT" "TND" "TOP" "TRY" "TTD" "TWD" "TZS" "UAH" "UGX" "USD" "USN" "USS" "UYU" "UZS" "VEF" "VND" "VUV" "WST" "XAF" "XAG" "XAU" "XBA" "XBB" "XBC" "XBD" "XCD" "XDR" "XFU" "XOF" "XPD" "XPF" "XPT" "XSU" "XTS" "XUA" "XXX" "YER" "ZAR" "ZMWβ |
bankAccountNumber | Bank account number |
items β linePrices :
netPrice
grossPrice
taxValue | Information on payments for a particular product line on the invoice:
number
number
number |
items β taxRate :
name
value | Tax information:
Ex. 5%, NP etc.
number, Tax rate in percentage value without symbol, ex. 5 instead of 5%. It could be also a floating point value |
items β itemPrices :
netPrice
grossPrice
taxValue | Information about price for products
number
number
number |
items β additionalCosts
type | Information about additional costs for products
type of additional costs |
additionalCosts β itemPrices :
netPrice
grossPrice
taxValue | Information about additional costs for products |
additionalCosts β linePrices :
netPrice
grossPrice
taxValue | information on additional costs for product lines |
paymentMethodData
id
name | payment method information
Identifier number of payment
name of information method |
orderReferenceNumber | order number |
goodsIssuedNoteNumber | Goods issued note number |
PUT - Create or update invoive
In order to add invoice to ONe platform use PUT
/api/v1/invoices/integrations/auth-required/invoices

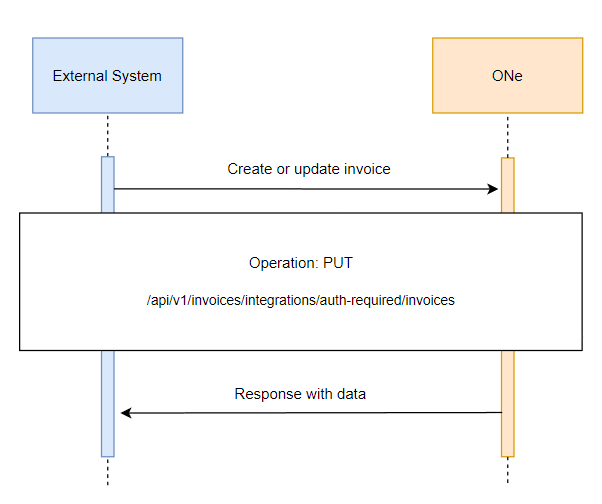

. The diagram below shows the dependency of communicating with the API:Example request:
jsoncurl -X POST "https://api-preprod.one.unity.pl/api/v1/invoices/integrations/auth-required/invoices" -H "accept: */*" -H "one-tenant: {tenant}" -H "ApiAuth: {apiKey}" -H "Content-Type: application/json" -d " { "amountPaid": 1000, "clientData": { -- required "clientId": "org:e8104641-f655-42c0-9ed0-176a4fe8e604", -- required "tin": "11111111", "clientType": "ORGANIZATION", -- required "addressData": { -- required "city": "Wroclaw", -- required "country": "Poland", -- required "name": "Warehouse", -- required "postalCode": "55-555", -- required "street": "Leska" -- required }, "phone": "11111111", "invoiceEmail": "example@b2b.one" }, "notes": [ -- Required, but could be empty "example note" ], "payerData": { "clientId": "org:e8104641-f655-42c0-9ed0-176a4fe8e604", "addressData": { -- required if payerDatais using "city": "Wroclaw", -- required if addressData is using "country": "Poland", -- required if addressData is using "name": "Warehouse", -- required if addressData is using "postalCode": "55-555", -- required if addressData is using "street": "Leska" -- required if addressData is using }, "tin": "11111111111", "phone": "1111111111" }, "tenantData": { -- required "addressData": { -- required "city": "wroclaw", -- required "country": "Polska", -- required "name": "ONe Company", -- required "postalCode": "55-342", -- required "street": "Miedzyleska" -- required }, "tin": "11111111" -- required }, "operatorData": { "id": "86b86ebc-ba2f-4f47-bd46-e25803d81a0d", -- required if operatorData is using "name": "Kacper Kacprowicz" -- required if operatorData is using }, "number": "9999/06/2022", -- required "receiptReferenceNumber": "P92/06/2022", "splitPayment": true, "isPaid": true, "customerPurchaseNumbers": [ -- required "100/d" ], "documentDate": "2022-12-12", -- required "totalPrices": { -- required "netPrice": 110, -- required "grossPrice": 10, -- required "taxValue": 40 -- required }, "paymentDate": "2022-12-12", -- required "saleDate": "2022-12-12", -- required "currencyCode": "PLN", -- required "bankAccountNumber": "21434235231234", "items": [ -- required { "lineNumber": 1, -- required "splitPayment": true, "type": "PRODUCT", -- required "itemName": "Programowany, bezprzewodowy regulator temperatury", -- required "gtin": "534634523522", "sku": "091FLRFV2", -- required "series": "SALUS", "manufacturer": "SALUS LIMITED", "notes": [ -- required "example note" ], "linePrices": { -- required "netPrice": 550, -- required "grossPrice": 30, -- required "taxValue": 20 -- required }, "pkwiu": "58.13.10.0", "taxRate": { -- required "name": "Tax", "value": 0.23 }, "itemPrices": { -- required "netPrice": 990, -- required "grossPrice": 90, -- required "taxValue": 50 -- required }, "discount": 10, -- required "itemBasePrices": { "netPrice": 5, -- required if itemBasePrices is using "grossPrice": 15, -- required if itemBasePrices is using "taxValue": 5 -- required if itemBasePrices is using }, "additionalCosts": [ -- required { "type": "KGO", -- required "itemPrices": { -- required "netPrice": 8, -- required "grossPrice": 9, -- required "taxValue": 1 -- required }, "linePrices": { -- required "netPrice": 40, -- required "grossPrice": 80, -- required "taxValue": 0.23 -- required } } ], "quantity": 5, -- required "unit": "szt.", -- required "orderReferenceNumber": "100/d", "orderReferenceLineNumber": 1, "goodsIssuedNoteNumber": "71/06/2022", "goodsIssuedNoteLineNumber": 1 } ], "paymentMethodData": { -- required "id": "497f6eca-6276-4993-bfeb-53cbbbba6f08", -- required "name": "example payment name" -- required } }
DELETE single invoice

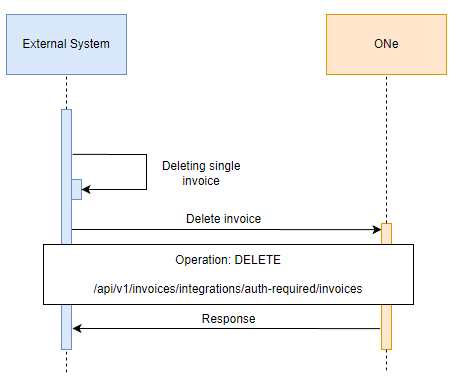

The sequence diagram below shows the dependency of communicating with the API:
Use the parameter below to delete invoice:
number
- invoice number
Example request:
jsoncurl -X DELETE DELETE "https://api-preprod.one.unity.pl/api/v1/invoices/integrations/auth-required/invoices?number=9999%2F06%2F2022" -H "accept: */*" -H "one-tenant: {tenant}" -H "ApiAuth: {apiKey}"
POST - Initialise file uploading for invoice
On the ONe platform, it is possible to send a document in the form of a PDF file to a specific invocie. Use POST
/api/v1/invoices/integrations/auth-required/invoices/file-upload-begin
to receive parameters on the basis of which it will be possible to add a document to our server.To add the document to our server, use an external tool. For example Talend Api Tester. At the end of the description, we will show an example of this tool how to add a file to our server.

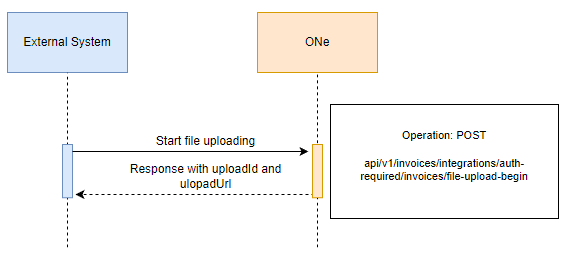

The sequence diagram below shows the dependency of communicating with the API:
Use the parameter to initialise file uploading for a specific document:
fileExtension
number
Example request:
jsoncurl -X POST "https://api-preprod.one.unity.pl/api/v1/invoices/integrations/auth-required/invoices/file-upload-begin?fileExtension=pdf&number=9999%2F06%2F2022" -H "accept: */*" -H "one-tenant: {tenant}" -H "ApiAuth: {apiKey}"
In response you will receive information about client blockade with the following data:
uploadUrl
uploadId
Example request:
json{ "uploadUrl": "https://{link}", "uploadId": "d497a40c-1eaf-4e7e-9ce2-aff19f1cc650" }
When we get
uploadUrl
and uploadId

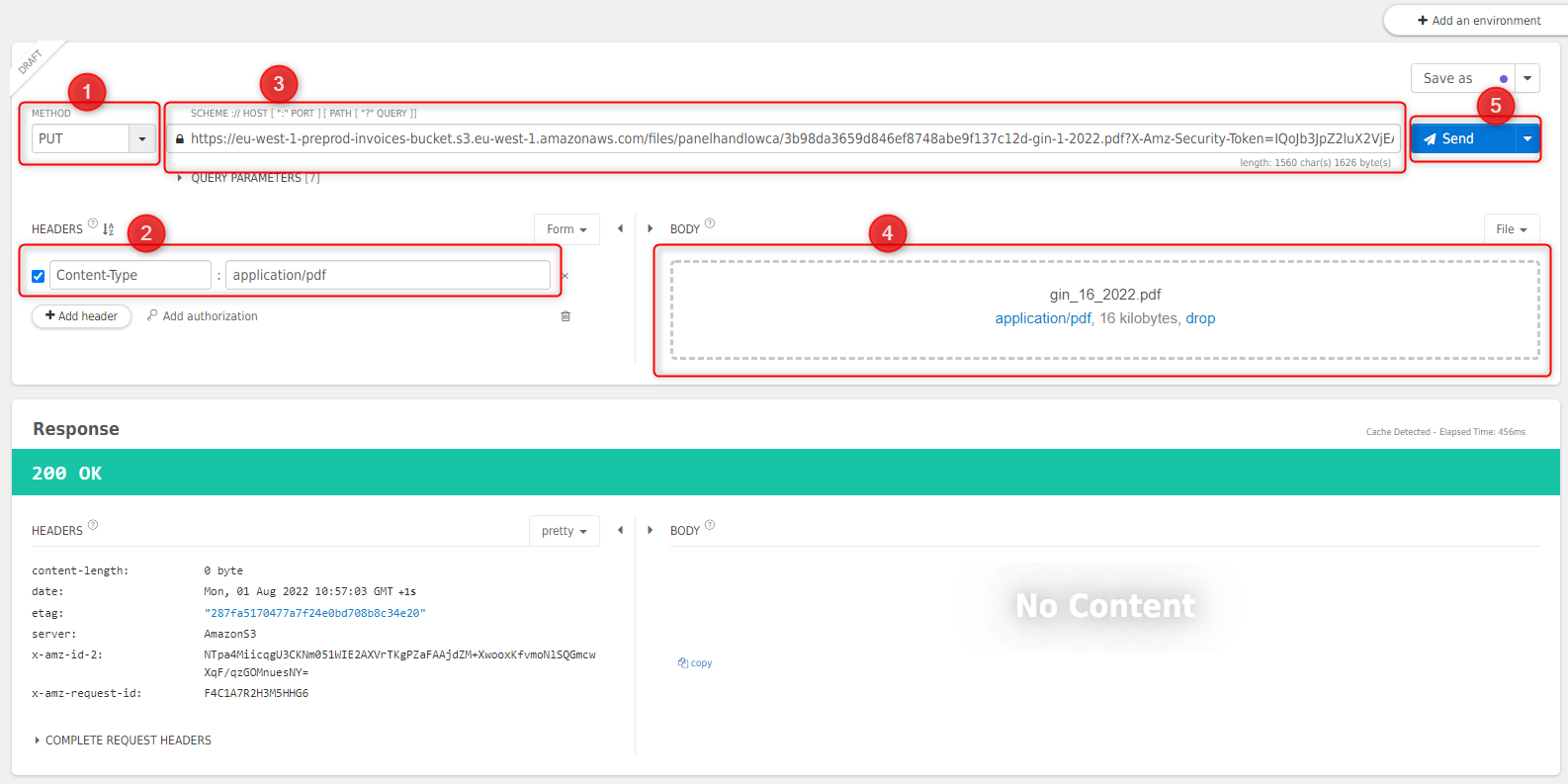

we can use tool to add documents to our server. Below we present how to do it using an Talend API Tester.
1 - method - PUT
2 - in headers - content-Type and choose application/pdf
3 - paste the link received in resonse to the request
4 - add file
5- press send
The document has been added to the server.
POST - Complete file uploading for invoice
This endpoint is used to complete the process of adding a document to our server. Use this endpoint after physically adding documents to the server - POST
/api/v1/invoices/integrations/auth-required/invoices/file-upload-complete

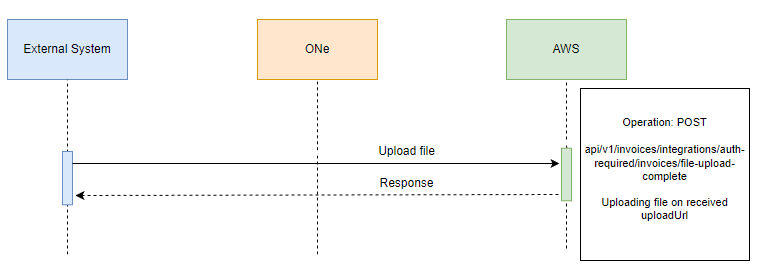

.The sequence diagram below shows the dependency of communicating with the API:
se the parameter below to finalize file uploading:
uploadId
Example request:
jsoncurl -X POST "https://api-preprod.one.unity.pl/api/v1/invoices/integrations/auth-required/invoices/file-upload-complete?uploadId=fbe457b2-c090-436e-8e80-3473e4404819" -H "accept: */*" -H "one-tenant: {tenant}" -H "ApiAuth: {apiKey}"
GET single invoice
There is possible to get specific invoice. Use GET
/api/v1/invoices/integrations/auth-required/invoices/single

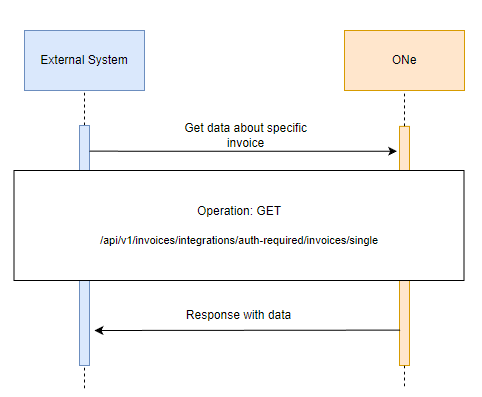

using specific ID. The diagram below shows the dependence of communicating with the API:
Use the parameter in query below to get information about specific invoice:
number
Example request:
jsoncurl -X GET "https://api-preprod.one.unity.pl/api/v1/invoices/integrations/auth-required/invoice-corrections/single?number=111%2Fkorekta" -H "accept: */*" -H "one-tenant: {tenant}" -H "ApiAuth: {apiKey}"
In response you will receive information about specific invoice
Example response:
json{ "clientData": { "clientId": "org:e8104641-f655-42c0-9ed0-176a4fe8e604", "clientType": "ORGANIZATION", "addressData": { "city": "Wroclaw", "country": "Poland", "name": "Warehouse", "postalCode": "55-555", "street": "Leska" }, "tin": "11111111", "phone": "11111111", "invoiceEmail": "example@b2b.one" }, "payerData": { "clientId": "org:e8104641-f655-42c0-9ed0-176a4fe8e604", "addressData": { "city": "Wroclaw", "country": "Poland", "name": "Warehouse", "postalCode": "55-555", "street": "Leska" }, "tin": "11111111111", "phone": "1111111111" }, "tenantData": { "addressData": { "city": "wroclaw", "country": "Polska", "name": "ONe Company", "postalCode": "55-342", "street": "Miedzyleska" }, "tin": "11111111" }, "operatorData": { "id": "86b86ebc-ba2f-4f47-bd46-e25803d81a0d", "name": "Kacper Kacprowicz" }, "fileData": { "url": "https://eu-west-1-preprod-invoices-bucket.s3.eu-west-1.amazonaws.com/files/klient/fbe457b2c090436e8e803473e4404819-9999-06-2022.pdf?X-Amz-Security-Token=IQoJb3JpZ2luX2VjEEIaCWV1LXdlc3QtMSJHMEUCIA%2FQ9NmRAEb7lRhOe%2BDhoqC598rOIVY3%2FEITptM716%2BmAiEA5qHwsM6IOHeXe1Licr01Z0ZT8HhfSOl2LqBldcgzeqAqmgQIu%2F%2F%2F%2F%2F%2F%2F%2F%2F%2F%2FARACGgwwMzQ2NzU3ODgwODciDOLpzpOIVRvNT0tLIyruAzOVS7m6x5yBBgokSMUhvLCm%2FZTdJJVIlAaViWOyqzhUMuiBjZgiAHJs2A0%2FWhM7POYD99ShumQZMGqzcD91egMUSiwcpwDb8SRz7E%2FZU1YdiuxKDmC6bKFUAtfbKhoSDnOVIObl%2FcSFknTTH%2FvKQVwwdNXspQ3qYrxUeh3KeEEY%2F0O%2F7SRRfMH3qosd2%2F8keBMYsXRfFrHOyECwtatKRwImhJKJQoV2Kz1hw9Yjq4pbrdxiblZtG6etTyp3KAzy2ogW4DM5UY7%2FuJF8AT%2BsisKYGzsvn9XHOhWDbx%2FD0OjnIpjPuqn0N1v7PEgO7zjdtyg1%2BluNxSerRFQleS2Sc35RrNylwyfdDavuclvWk8OesAMqEXl2ADaWeU8JSt4nu4GOnyw%2BtMSIaILsJJ9GEmyAjpZx2zpV4k2uQlL%2FbJSVtzo3yiCwhevD3YxC1NvNyjFFHOnJVRlBq4av2KVH%2F7v8%2BCe75MNkA8kg8U19gz23vMuKZrtO0vVWHvSVK6u8D8%2F3wqsclRF1F6sLtL0xeCIX2R620vprcHf%2FDjQmRz8mROAANdtuqD0LgQGKPMJHvQUkmCIA5k5EKYBN6LMhK28CyaLb5Ay1ANblcqj2hyehBRH13sP8RMlYH4PKDyDjXQ1jyLmYA83u4VKlfR41MKyOnZgGOqYBZCi%2FFn4G3E2%2B2ZsD3gmk%2FQMQrIkE2exmtgY%2FHh%2B6mpSKDOHvc3aTd%2FWVPFyKAKeXCf1SAyoYDBOjQJAw3%2FocGu3ndw93oa8kABBd19aRx234tM6tWtSXBixThVNsXPf8jous%2FK%2BEpOFh1onq%2BXNV84lWbdIP%2BlWU9Mf51XHdFDj4oyuvoFKhEZsMQMDOvF66YKhx3mq3XswIWJzqKvxUIjprRIYZYA%3D%3D&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Date=20220825T112128Z&X-Amz-SignedHeaders=host&X-Amz-Expires=3600&X-Amz-Credential=ASIAQQEWWRE37NY2O7PB%2F20220825%2Feu-west-1%2Fs3%2Faws4_request&X-Amz-Signature=f688fab496cdd890fe29b528a1ed93909080bf843eb7aeea570c0071ab6e18ee", "extension": "pdf" }, "number": "9999/06/2022", "receiptReferenceNumber": null, "splitPayment": true, "amountPaid": 1000, "isPaid": true, "customerPurchaseNumbers": [ "100/d" ], "documentDate": "2022-12-12", "totalPrices": { "netPrice": 110, "grossPrice": 10, "taxValue": 40 }, "paymentDate": "2022-12-12", "saleDate": "2022-12-12", "currencyCode": "PLN", "bankAccountNumber": "21434235231234", "notes": [ "example note" ], "items": [ { "lineNumber": 1, "type": "PRODUCT", "itemName": "Programowany, bezprzewodowy regulator temperatury", "gtin": "534634523522", "sku": "091FLRFV2", "series": "SALUS", "manufacturer": "SALUS LIMITED", "notes": [ "example note" ], "linePrices": { "netPrice": 550, "grossPrice": 30, "taxValue": 20 }, "pkwiu": "58.13.10.0", "taxRate": { "value": 0.23, "name": "Tax" }, "itemPrices": { "netPrice": 990, "grossPrice": 90, "taxValue": 50 }, "discount": 10, "itemBasePrices": { "netPrice": 5, "grossPrice": 15, "taxValue": 5 }, "additionalCosts": [ { "type": "KGO", "itemPrices": { "netPrice": 8, "grossPrice": 9, "taxValue": 1 }, "linePrices": { "netPrice": 40, "grossPrice": 80, "taxValue": 0.23 } } ], "quantity": 5, "unit": "szt.", "orderReferenceNumber": "100/d", "orderReferenceLineNumber": 1, "goodsIssuedNoteNumber": "71/06/2022", "goodsIssuedNoteLineNumber": 1, "splitPayment": true } ], "paymentMethodData": { "id": "497f6eca-6276-4993-bfeb-53cbbbba6f08", "name": "example payment name" }, "invoiceCorrectionsReferenceNumbers": [], "orderReferenceNumbers": [ "100/d" ], "goodsIssuedNoteReferenceNumbers": [ "71/06/2022" ], "goodsReceivedNoteReferenceNumbers": [] }
GET invoice status (amount paid and if it's fully paid)
There is possible to get status of specific invoice. Use GET
/api/v1/invoices/integrations/auth-required/invoices/status

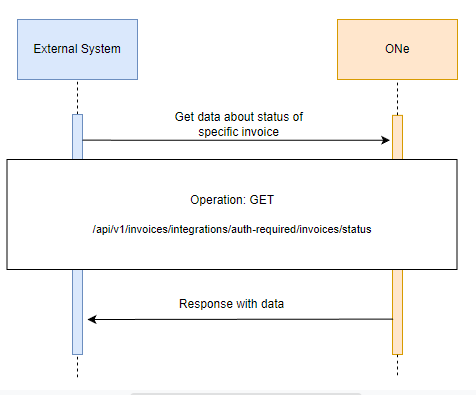

using specific ID. The diagram below shows the dependence of communicating with the API:Use the parameter in query below to get information about status (amount paid and if it's fully paid) of specific invoice :
number
Example request:
jsoncurl -X GET "https://api-preprod.one.unity.pl/api/v1/invoices/integrations/auth-required/invoices/status?number=9999%2F06%2F2022" -H "accept: */*" -H "one-tenant: {tenant}" -H "ApiAuth: {apiKey}"
In response you will receive information about invoice payment status:
Example response:
json{ "amountPaid": 1000, "isPaid": true }
PUT - set invoice status (amount paid and if it's fully paid)
With this endpoint it is possible to set whether the invoice has been fully paid and what amount has been paid. To do this, use PUT
/api/v1/invoices/integrations/auth-required/invoices/status

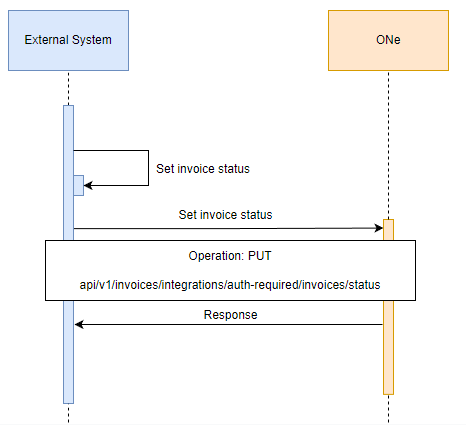

. The sequence diagram below shows the process: Use the parameter in query below to set invoice status (amount paid and if it's fully paid)
number
Example request:
jsoncurl -X PUT "https://api-preprod.one.unity.pl/api/v1/invoices/integrations/auth-required/invoices/status?number=9999%2F06%2F2022" -H "accept: */*" -H "one-tenant: {tenant}" -H "ApiAuth: {apiKey}"
